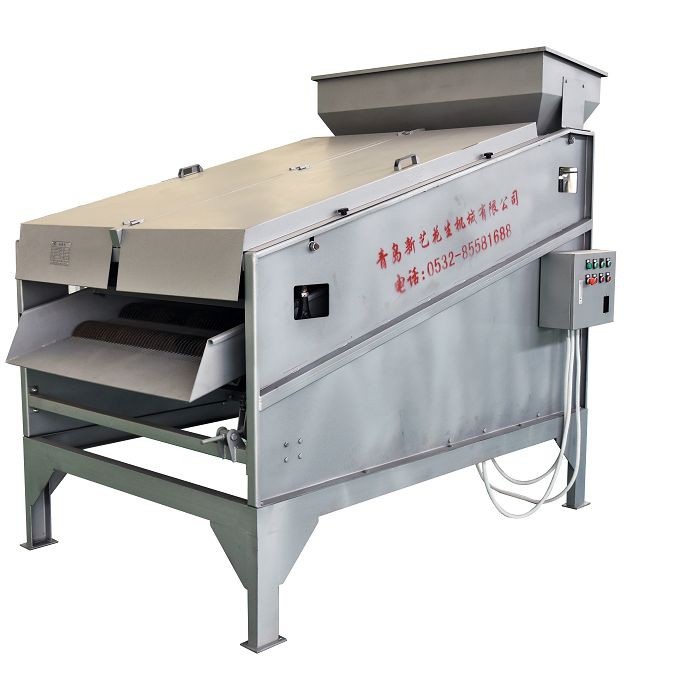

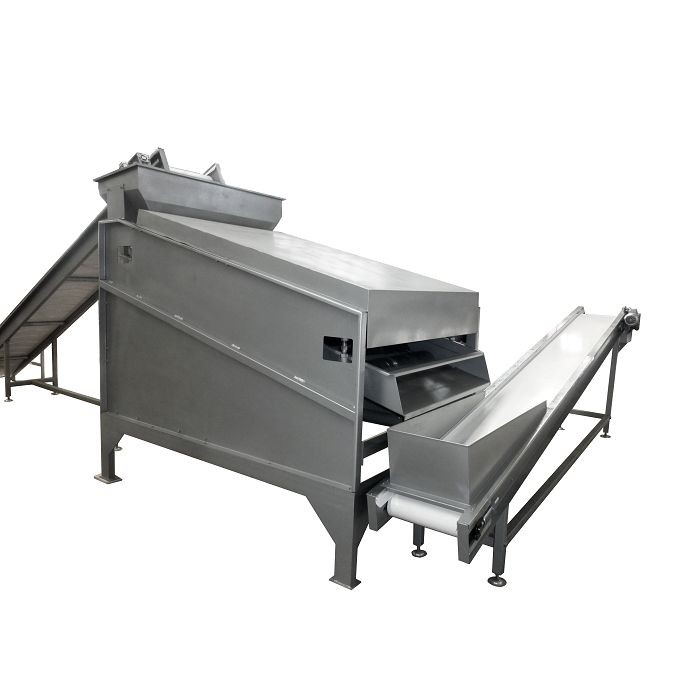

Peanut Picking Machine

1. Working principle of peanut picking machine
The peanut vines feed to the pick fruit system through automatic feeding machine, peanut vines were blow out through the wind selection sections after the roller gear make the peanut fruit fall off from peanut vines, finally the fruit and other peanut impurities drop to vibrating screen. the peanut vines discharge from the The material mouth, scattered over vibrating screen of mixed fruits by vibrating screen to suction fan miscellaneous mouth out fruit impurities,select clean fruit so that complete the whole processing process.

2. Application:
The peanut picking machine is used to remove the peanut off the straw. This machine is for the dry and wet peanut straw.

3. Structure:
The peanut picking machine consists of rack, motor (diesel), transmission part, picking out the parts of the fan selected parts fan Cheongsam selected part, vibration institutions etc.

4. Data of peanut picking machine
Output: 1000kgs/hour
Power: 2.2kw
Picking rate: >95%
Size: 6500×1500×2800
